Clinical Outcomes and Efficacy of Percutaneous Transforaminal Endoscopic Discectomy for Lumbar Disc Herniation
Methods: Seventy patients suffering from sciatica due to LDH were treated by PTED. Patient demographic characteristics as well as quality of life measures, Oswestry disability index (ODI), visual analogue scale (VAS), and outcome of MacNab’s response were collected preoperatively, 6 weeks after surgery, and 12 months postoperatively.

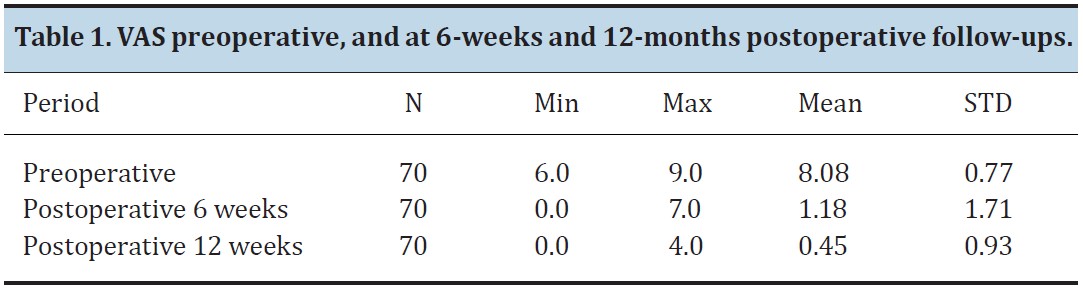

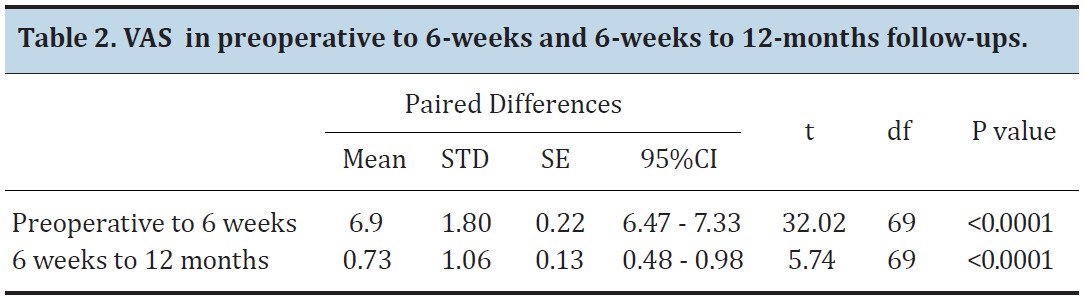

Results: Mean age of the study group was 33.12±8.8 years. The most common level of LDH was L4-L5 (61.4%) and L5-S1 (27%). Conversion to open microdiscectomy was required in 6 (8.3%) patients. VAS score and ODI demonstrated significant difference at 6-week and 12-month follow-up. MacNab criteria revealed a significant improvement at 6 weeks, but not at 12 month follow-up.
Discussion: PTED in the lumbar spine demonstrates comparable rates of satisfaction to microdiscectomy, and it requires shorter hospitalization and revalidations period. Level of Evidence: II; Prospective case series.
Keywords: Lumbar disc herniation; Lumbar discectomy; Transforaminal endoscopic discectomy.
Lumbar disc herniation (LDH) represents the major cause of low back pain and sciatica among the population . The most important and common symptom is lumbosacral radicular leg pain commonly accompanied with muscle weakness and numbness [2,3]. Symptomatic LDH can be managed variably. Conservative therapy by interventional pain treatment (analgesics, physical therapy) is the first line of treatment; however, surgical treatment should be considered if symptoms persist, worsen, or reduce the quality of the patient’s life .
Surgery for LDH can be classified into 2 broad categories: open or minimally invasive surgery and posterior versus posterolateral approach. Currently, open microdiscectomy is the gold standard for treating LDH . The technique is associated with good results; however, some damage is caused to the surrounding musculoskeletal structure . Percutaneous transforaminal endoscopic discectomy (PTED) is a minimally invasive technique that has recently gained a growing interest. The concept of PTED is to provide surgical options that optimally address disc pathology and repair, avoiding iatrogenic morbidity associated with open surgical procedures .
The purpose of this study was to report our experience on a series of patients who underwent PTED with symptomatic disc herniation and to evaluate PTED efficacy in the treatment of LDH. MATERIALS & METHODS
Between January 2011 and March 2015, after receiving appropriate IRB approval, 280 patients examined at the authors’ outpatient clinic suffering from sciatica due to LDH were evaluated. Of those, 70 were treated by means of PTED by a single surgeon. All patients initially received conservative treatment. If symptoms persisted, MRI of the lumbar spine was requested and evaluated. When surgery was indicated, written informed consent was obtained.
The demographic characteristics of the patients’ group were recorded including sex, age, duration of low back pain and leg pain, straight leg raising test, and neurologic status were recorded. Quality of life measures Oswestry disability index (ODI), visual analogue scale (VAS), and outcome of MacNab’s response were collected preoperatively, 6 weeks, and 12 months postoperatively at the outpatient clinic or through phone interviews. MRI and X-rays of lumbar spine were performed on all patients. In case of recurrent or persistent radiculopathy, a postoperative MRI was performed to identify the underlying pathology.
The inclusion criteria to our study were contained disc protrusion on pre- operative MRI, motor weakness, sensory changes, straight leg test positive, and presence of abnormal reflex due to LDH, unsuccessful conservative treatment for at least 6 weeks, age 20-60 years, and the absence of previous lumbar surgery on the same disc level. Patients with severe spinal stenosis and spondylolisthesis were excluded from our study.
Surgery was carried out with the patient in the prone position under general anesthesia, with the back mildly flexed. The optimal skin entry point was more lateral (8–14 cm from the midline). An 18-gauge spinal needle was gently introduced laterally under fluoroscopic guidance, through a triangular working zone into the intervertebral disc to touch the annular surface. This zone is formed (on lateral view) posteriorly by the superior facet joint, inferiorly by the upper endplate of the caudal vertebrae, and superiorly and anteriorly by the nerve root exiting the neural foramen. The superior facet joint was used as an anatomic landmark to avoid puncturing injuries and compressions to the existing nerve root. Following spinal needle puncture of the targeted disc, a guide wire was inserted via the needle, and the needle was then removed. Next, 2 conical rods were introduced over the guidewire to stretch the soft tissue. After dilation, a 4-mm drill and then, successively, a 6-mm drill and an 8-mm drill were used to enlarge the safe caudal part of the neuroforamen, also known as Kambin’s triangle , while keeping the guidewire in place. The working cannula was introduced over the second dilatator until the tip was located on the disc herniation, close to the posterior longitudinal ligament. The endoscope together with working and irrigation channels were introduced, and the herniated disc material was removed in 1 part, or piecemeal, with disc forceps. The decompression was considered sufficient if the nerve showed pulsations similar to the heart rate and the amount of removed disc material approximately matched the amount seen on the MRI. The skin was closed with 2 nylon stitches. The blood loss associated with this procedure was minimal (less than 1-5 mL), although no objective measurements could be performed.
Self-evaluation questionnaires including ODI , VAS score , and MacNab criteria  were used as indices of clinical outcome. This evaluation included recurrence of symptoms, complications, subsequent surgical treatment, duration of hospitalization, and time to returning to work. All data were recorded through initial records, telephone calls, emails, and follow-up visits at our outpatient clinic. The evaluation was performed in all patients preoperatively, as well as 6 weeks, and 12 months postoperatively.
Data analysis was performed by IBM SPSS ver. 20.0. Descriptive statistics were used to analyze demographic data. Comparison between subgroups was made with rank sum test, paired-sample t-tests, Fisher exact tests, and p<0.05 was considered statistically significant. RESULTS Seventy patients underwent PTED due to LDH by 1 surgeon. Conversion to open microdiscectomy was required in 6 (8.3%) patients. At the 12-month follow-up, all patients were available for evaluation. Mean age of the study group was 33.12± 8.8 years. The most common level of LDH was L4-L5 (61.4%) and L5-S1 (27%). Preoperatively, 6 weeks and 12 months post-operatively VAS score, ODI, and MacNab criteria were recorded. Mean VAS score for lower back and leg pain was 8.08 (range 6-9). Six weeks postoperatively, the mean VAS score was 1.18 (range 0-7) (Table 1). Statistically significant difference was encountered (p<0.001) between preoperative and 6 weeks postoperative VAS score (mean 6.9; p<0.001). Twelve months postoperatively mean VAS score was 0.45 (range 0-4). Between 6 weeks and 12 months postoperatively, a significant decrease of the score (mean 0.728, p<0.001) was detected (Table 2).

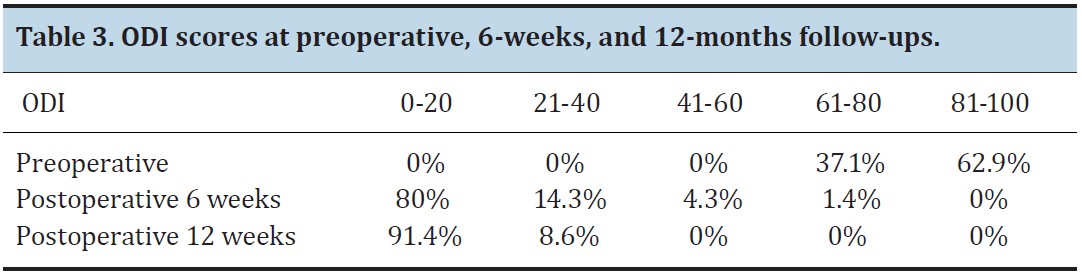

Preoperative, 6 weeks, and 12 months postoperative ODI scores were measured and compared with rank sum test. Preoperatively, 62.9% of the patients had severe disability (ODI=81-100) and 37.1% disability (ODI=61-80). Six weeks postoperatively, 80% of the patients demonstrated no disability (ODI=0-20), 14.3% minimal disability (ODI=21-40), 4.3% (ODI=41-60), and 1.4% of the patient with 61-80% disability. Finally, 12 months postoperatively, 91.4% of the patients had no disability (ODI=0-20) and 8.6% had minor disability (ODI=21-40). The preoperative ODI score demonstrated a significant decrease compared to 6 weeks postoperative follow-up (statistically significant Z=-7,452, p<0.005). A comparison of ODI between 6 weeks and 12 months postoperatively indicated a statistically significant improvement (Z=-3,357, p=0.001) (Table 3).

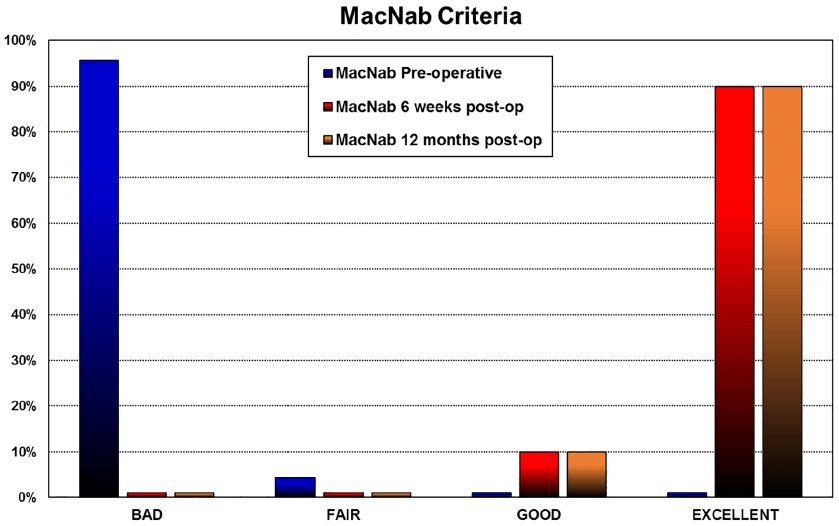

The analysis of MacNab criteria demonstrated that preoperatively 95.7% of patients had poor quality and 4.3% fair quality of life. At 6 weeks postoperatively, 10% of patients had good results and 90% excellent results. At 12 weeks postoperatively, the percentage remained the same. A statistically significant improvement was found between preoperative and 6 weeks postoperative follow-up (Ζ=-7,909, p<0.05). However, no statistical difference between 6 weeks and 12 months postoperative follow-ups (Ζ=0, p=1,000) was demonstrated (Figure 1).
Further data analysis revealed a positive linear correlation between age and alteration of patients’ VAS score (Pearson correlation r=0.363, p=0.002) in the pre- and postoperative periods
The recurrence rate of LDH and need of reoperation was 8.3% (6 patients) within the first 12 months postoperatively in this case series. In the observational studies, the median reoperation rate was 7% (0–27%), according to Nellendteijn et al. . Sencer et al. publishing the short-term clinical results of 163 patients undergoing either PTED or percutaneous interlaminar endoscopic discectomy, reported a recurrence rate of LDH of only 2.8%, which is the lowest published in the literature for PTED so far . In the study of Gadjradj et al., 12 patients (7.2%) required additional surgical procedures due to recurrence of LDH, 11 at the same level, and 1 at a different level . In a large single-center retrospective review of 10,228 cases, Choi et al. showed that failure of PTED was mostly due to incomplete removal of herniated disc material . Wang et al published a retrospective review on 350 patients that underwent PTED and retrieved 36 patients with recurrence LDH (10.3%) . Older patients, elderly patients, and patients with diabetes were at increased risk of PTED failure, specifically in the early years of the procedure’s use. In this study, 4 patients had a recurrence in the first 2 years this technique was performed. Adequate removal of LDH, careful patient selection for surgery, and surgeon’s experience are the most important elements for avoiding recurrence following PTED. In this study, the positive linear correlation between age and VAS score improvement proves that younger patients have better outcomes after PTED due to the fact that their LDH is recent and softer, and as a result it can be removed easily endoscopically. On the other hand, for older patients (>60 years), LDH is usually hard, and bony stenosis is usually encountered .
Literature reveals comparable rates of satisfaction following PTED and microdiscectomy in lumbar spine [6,22-24]. Cong et al. published a meta-analysis that compares endoscopic discectomy and open microdiscectomy and found a significantly higher satisfaction rate in patients that underwent endoscopic discectomy. Furthermore, the authors reported that endoscopic discectomy is associated with less blood loss and earlier hospital discharge . Sinkemani et al. conducted a retrospective case control evaluation of 86 patients who underwent microendoscopic discectomy (MED) or PTED and showed no significant difference between the techniques’ clinical outcomes .
In our series, all patients were discharged from the hospital 24 hours following PTED and returned to work after a mean of 4 weeks. Three randomized control trials reported similar results on PTED with reduced hospital stay and faster return to work, compared to microdiscectomy [14,26-28]. The short hospitalization, shorter revalidations period, and earlier return to work may result in an economic advantage for PTED. Further studies should be performed alongside these trials to assess the cost-effectiveness and cost utility of transforaminal endoscopic surgery.
More high-quality, randomized control trials with sufficiently large sample sizes and the assessment of cost effectiveness of PTED compared to open microdiscectomy need to be performed in order to establish PTED as the gold standard for lumbar disc herniation. REFERENCES
 Andersson GB. Epidemiological features of chronic low-back pain. Lancet. 1999;354:581-5.
 Ropper AH, Zafonte RD. Sciatica. N Engl J Med. 2015;372:1240-8.
 Van Tulder M, Peul W, Koes B. Sciatica: what the rheumatologist needs to know. Nat Rev Rheumatol. 2010;6:139-45.
 Jacobs WC, van Tulder M, Arts M, Rubinstein SM, van Middelkoop M, Ostelo R, et al. Surgery versus conservative management of sciatica due to a lumbar herniated disc: a systematic review. Eur Spine J. 2011;20:513-22.
 Wu X, Zhuang S, Mao Z, Chen H. Microendoscopic discectomy for lumbar disc herniation: surgical tech¬nique and outcome in 873 consecutive cases. Spine (Phila Pa 1976) 2006;31:2689-94.
 Caspar W. A new surgical procedure for lumbar disk herniation causing less tissue damage through a microsurgical approach. Adv Neurosurg. 1977;4:74-7.
 Nellensteijn J, Ostelo R, Bartels R, Peul W, van Royen B, van Tulder M. Transforaminal endoscopic surgery for symptomatic lumbar disc herniations: a systematic review of the literature. Eur Spine J. 2010;19:181-204.
 Kambin P, Sampson S. Posterolateral percutaneous suction-excision of herniated lumbar intervertebral discs. Report of interim results. Clin Orthop Relat Res. 1986;207:37-43.
 Yakut E, Düger T, Oksüz C, Yörükan S, Ureten K, et al. Validation of the Turkish version of the Oswestry Disability Index for patients with low back pain. Spine (Phila Pa 1976). 2004;29:581‑5.
 Scott J, Huskisson EC. Graphic representation of pain. Pain. 1976;2:175‑84.
 Macnab I. Negative disc exploration. An analysis of the causes of nerve‑root involvement in sixty‑eight patients. J Bone Joint Surg Am. 1971;53:891‑903.
 Kamper SJ, Ostelo RW, Rubinstein SM, Nellensteijn JM, Peul WC, Arts MP, et al. Minimally invasive surgery for lumbar disc herniation: a systematic review and meta-analysis. Eur Spine J. 2014;23:1021-43.
 Gadjradj PS, van Tulder MW, Dirven CMF, Peul WC, Harhangi BS. Clinical outcomes after percutaneous transforaminal endoscopic discectomy for lumbar disc herniation: a prospective case series. Neurosurg Focus. 2016;40:E3.
 Ruetten S, Komp M, Merk H, Godolias G. Full-endoscopic interlaminar and transforaminal lumbar discectomy versus conventional microsurgical technique: a prospective, randomized, controlled study. Spine (Phila Pa 1976). 2008;33:931-9.
 Türk CC, Kara NN, Biliciler B, Karasoy M. Clinical outcomes and efficacy of transforaminal lumbar endoscopic discectomy. J Neurosci Rural Pract. 2015;6:344-8.
 Sinkemani A, Hong X, Gao ZX, Zhuang SY, Jiang ZL, et al. Outcomes of Microendoscopic Discectomy and Percutaneous Transforaminal Endoscopic Discectomy for the Treatment of Lumbar Disc Herniation: A Comparative Retrospective Study. Asian Spine J. 2015;9:833-40.
 Yeung AT, Tsou PM. Posterolateral endoscopic excision for lumbar disc herniation: surgical technique, outcome, and complications in 307 consecutive cases. Spine. 2002;27:722-31
 Jasper GP, Francisco GM, Telfeian AE. Clinical success of transforaminal endoscopic discectomy with foraminotomy: A retrospective evaluation. Clin Neurol Neurosurg. 2013;115:1961‑5.
 Sencer A, Yorukoglu AG, Akcakaya MO, Aras Y, Aydoseli A, Boyali O, et al. Fully endoscopic interlaminar and transforaminal lumbar discectomy: short-term clinical results of 163 surgically treated patients. World Neurosurg 2014; 82:884-90.
 Choi KC, Lee JH, Kim JS, Sabal LA, Lee S, Kim H, Lee SH. Unsuccessful percutaneous endoscopic lumbar discectomy: a single-center experience of 10,228 cases. Neurosurgery. 2015;76:372-81.
 Wang H, Zhou Y, Li C, Liu J, Xiang L. Risk factors for failure of single-level percutaneous endoscopic lumbar discectomy. J Neurosurg Spine. 2015;23:320-5.
 Hoogland T, van den Brekel-Dijkstra K, Schubert M, Miklitz B. Endoscopic transforaminal discectomy for recurrent lumbar disc herniation: a prospective, cohort evaluation of 262 consecutive cases. Spine (Phila Pa 1976). 2008;33:973-8.
 Ahn Y, Lee SH, Park WM, Lee HY, Shin SW, Kang HY. Percutaneous endoscopic lumbar discectomy for recurrent disc herniation: surgical technique, outcome, and prognostic factors of 43 consecutive cases. Spine (Phila Pa 1976). 2004;29:E326-32.
 Ahn Y, Lee SH, Lee JH, Kim JU, Liu WC. Transforaminal percutaneous endoscopic lumbar discectomy for upper lumbar disc herniation: clinical outcome, prognostic factors, and technical consideration. Acta Neurochir (Wien). 2009;151:199-206.
 Cong L, Zhu Y, Tu G. A meta-analysis of endoscopic discectomy versus open discectomy for symptomatic lumbar disk herniation. Eur Spine J. 2016;25:134-43.
 Righesso O, Falavigna A, and Avanzi O. Comparison of open discectomy with microendoscopic discectomy in lumbar disc herniations: results of a randomized controlled trial. Neurosurgery. 2007;61:545-9.
 Ruetten S, Komp M, Merk H, Godolias G. Recurrent lumbar disc herniation after conventional discectomy: a prospective, randomized study comparing full-endoscopic interlaminar and transforaminal versus microsurgical revision. J Spinal Disord Tech. 2009;22:122-9.
 Birkenmaier C, Komp M, Leu HF, Wegener B, Ruetten S. The current state of endoscopic disc surgery: review of controlled studies comparing full-endoscopic procedures for disc herniations to standard procedures. Pain Physician. 2013;16:335-44.
